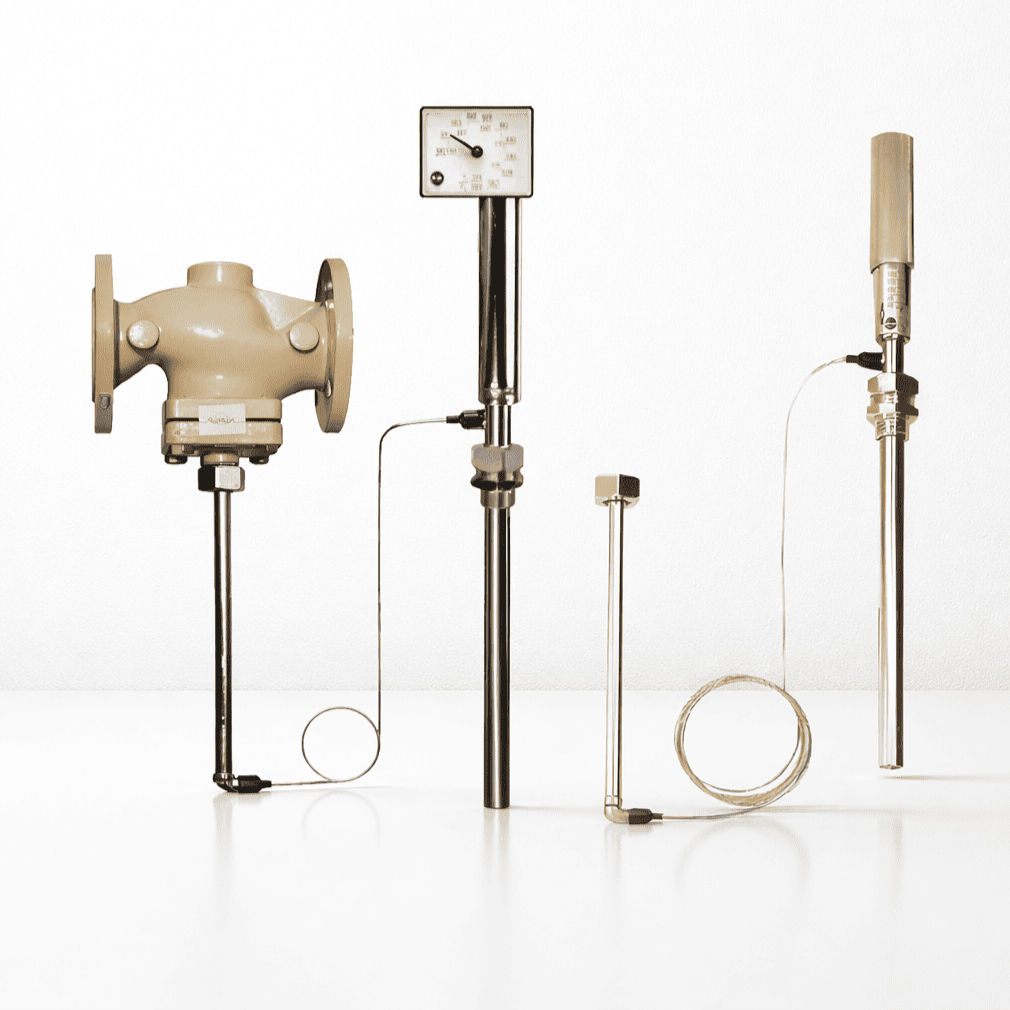

Thermostatic Valve, Type 2141 - T1

Heating systems
Temperature-controlled process lines
Boiler and heat-exchanger applications
Industrial temperature-control systems
Temperature regulation for machinery and plant equipment

Product type: Thermostatic valve
Model: Type 2141 - T1
Function: Valve closes as temperature rises
Application: Heating systems
Thermostat type: 2231
Thermostat setting ranges: -10 to +90°C / 20 to 120°C / 50 to 150°C
Capillary tube: 5 m
Custom capillary options: 10 m / 15 m
Body materials:
EN-JL1040 – cast iron – PN16
EN-JS1049 – ductile iron – PN25
1.0619 – cast steel – PN40
1.4408 – cast stainless steel – PN40

Automatic closure based on temperature
Precise control for heating applications
Wide range of uses with multiple temperature settings
Remote sensing via capillary tube
Compatible with different systems through multiple body material options

DN15 – Kvs 4 – ΔP 25 bar – Maximum temperature 220°C
DN20 – Kvs 6.3 – ΔP 16 bar – Maximum temperature 220°C
DN25 – Kvs 8 – ΔP 14 bar – Maximum temperature 220°C
DN32 – Kvs 16 – ΔP 6 bar – Maximum temperature 220°C
DN40 – Kvs 20 – ΔP 4 bar – Maximum temperature 220°C
DN50 – Kvs 32 – ΔP 3 bar – Maximum temperature 220°C
DN65 – Kvs 50 – ΔP 2 bar – Maximum temperature 150°C
DN80 – Kvs 80 – ΔP 1 bar – Maximum temperature 150°C
DN100 – Kvs 125 – ΔP 0.5 bar – Maximum temperature 150°C
